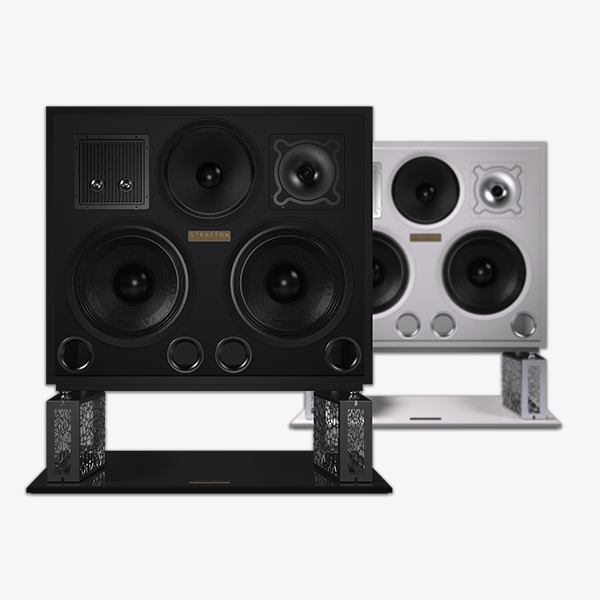

Stratton – ELYPSIS -1512

Specifications

• System Type: Quad-reflex loaded three-way passive speaker system.
• Cabinet: Substantially braced birch-ply construction.
• Bass Drivers: 2 × 380 mm (15″) paper-diaphragm with ferrite motor.
• Midrange Driver: 300 mm (12″) selectively hand-doped paper-diaphragm with NeFeB motor.
• Tweeter: 29 mm (1.2″) wave-guide-loaded soft-dome with NeFeB motor.
• Crossover: Part-impedance-compensated three-way network with asymmetric second and third-order slopes. Crossover frequencies: 350 Hz and 2.5 kHz.
• Frequency Response: 45 Hz to 18 kHz ±2 dB. Low-frequency cut-off: −6 dB at ~28 Hz.
• Sensitivity: 96 dB for 2.83 V at 1 m.
• Nominal Impedance: 8 Ω (minimum 8 Ω between 100 Hz and 10 kHz).
• Group Delay: < 12 ms above ~40 Hz.
• Connections: Tri-wire / Tri-amp Neutrik Speakon sockets.
• Dimensions (Speaker only): Width 1000 mm × Height 900 mm × Depth 500 mm. Weight approx. 120 kg each.
