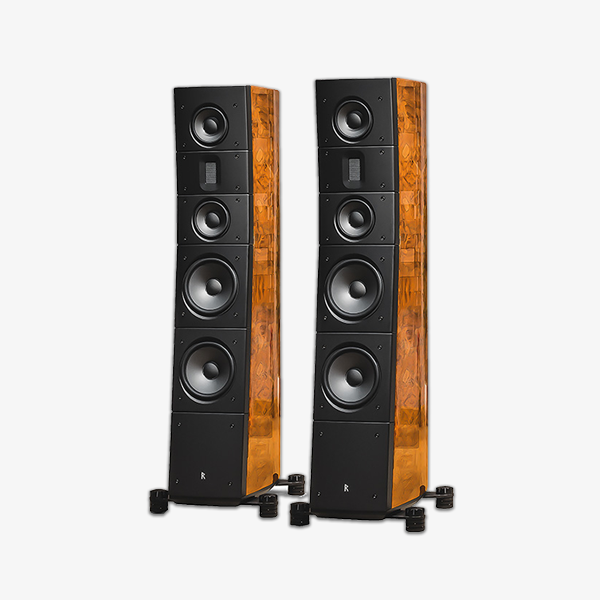

RAIDHO TD3.8 Special Edition

Specifications

• Design: 3-way, rear-ported bass reflex.

• Drivers:

  • 1 × Ribbon tweeter (Raidho proprietary design)

  • 2 × 5″ (127 mm) “TD” (Tantalum/Diamond) midrange drivers in MTM configuration.

  • 2 × 8″ (203 mm) TD-cone woofers

• Crossover frequencies: 400 Hz and 2.4 kHz (stepped-slope)

• Frequency range: 24 Hz – 50 kHz (±3 dB)

• Sensitivity: ~ 89 dB / 2.83 V/m

• Nominal impedance: 6 Ω; minimum impedance ~ 4 Ω (at ~120 Hz)

• Recommended amplifier power: 50 W to 300 W

• Dimensions: Height ~1422 mm (56″) × Width ~432 mm (17″) × Depth ~584 mm (23″) including outriggers.

• Weight: ~83 kg (≈183 lb) each.

• Finishes: Piano Black, Walnut Burl veneer and custom colors available on request.
