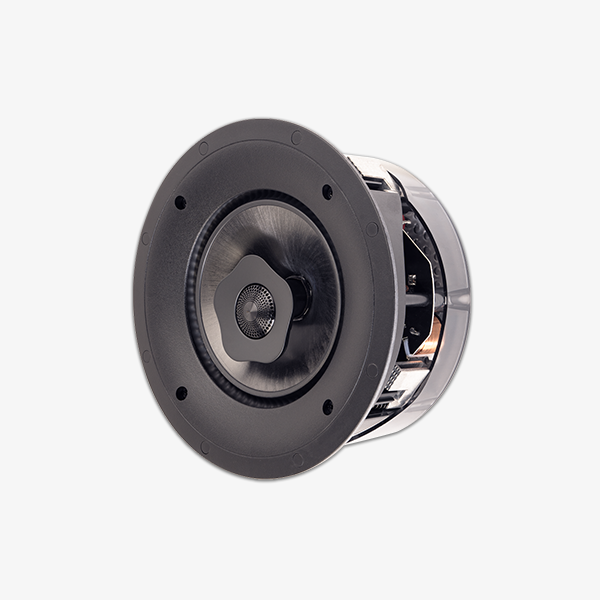

Paradigm CI Pro P65-R v2

Specifications

• Type/Design: 2-driver, 2-way in-ceiling speaker with advanced Shock-Mount™ isolation system and nylon-reinforced baffle.

• High-Frequency Driver: 1″ (≈2.5 cm) Al-Mg-Ceramic (AL-MAC™) tweeter with Perforated Phase-Aligning (PPA™) lens and Reduced Edge Diffraction (RED™) housing.

• Mid/Bass Driver: 6.5″ (16.5 cm) CARBON-X™ cone with Active Ridge Technology (ART™) surround, in a die-cast aluminum basket.

• Frequency Response (On-Axis ±3 dB): 75 Hz – 22 kHz.

• Frequency Response 30° Off-Axis ±3 dB: 75 Hz – 18 kHz.

• Low-Frequency Extension: Down to 41 Hz.

• Sensitivity: 91.5 dB (in-room) / 87.5 dB (anechoic).

• Nominal Impedance: Compatible with 8 Ω.

• Suitable Amplifier Power Range: 15 – 100 W.

• Maximum Input Power: 80 W.

• Crossover: 2nd-order electro-acoustic at 2.5 kHz.

• Cut-Out / Mounting Dimensions: Cut-out diameter approx. 7-3/4″ (19.7 cm). Minimum mounting depth approx. 3-5/8″ (9.2 cm). Overall diameter with grille ~8-7/8″ (22.6 cm) and depth ~4-1/4″ (10.7 cm).
