Marantz AMP 20

Details & Specifications

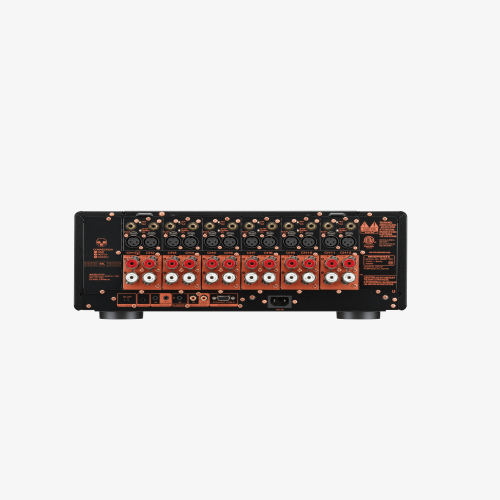

Inputs Outputs

Main Amplifier in
Balanced & Unbalanced: 12ch (Exclusive use by a selector switch.)
Speaker Terminal
SPKT-1+
Number of Speaker Terminals
12
Bi-Amp Drive /BTL Drive
Yes / Yes
Level Meter
Yes
Chassis
Copper Plated
Multi-Room CI
RS232 Control
Yes
IR Flasher In
Yes
Marantz Remote Bus
Yes
DC Trigger Input/ Output
1 / 1

Specifications

Number of poweramps
12
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL
200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal
400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal
200W

General

Front Display
Level Meter
Auto Power Off
Yes
Metal Front Panel
Yes
Power Consumption
400W
Power Consumption, No-Sound
110W
Standby Consumption
0.2W
Maximum Dimensions (W × D × H)
17.4 × 17.4 × 7.5 in.
Weight
39.7 lbs
What’s in the box
Main unit, quick start guide,
AC cord,Amp control cable,
Remote control cable,
SP terminal wrench
UPC code
747192143930
