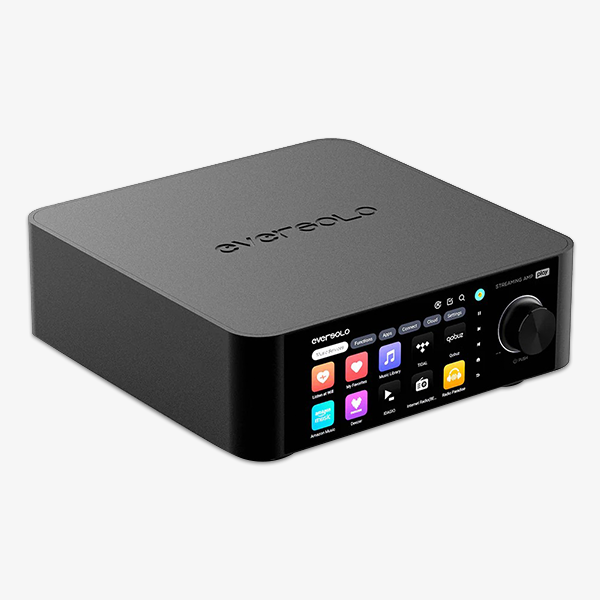

Eversolo

Specifications

• Amplifier Type: Integrated Streaming Amplifier

• Output Power:

  • 200 W × 2 into 8 Ω

  • 320 W × 2 into 4 Ω

  • 450 W × 2 into 2 Ω

  • Bridged mode: 650 W × 1 into 8 Ω / 950 W × 1 into 4 Ω

• Amplifier Class: A/B

• Frequency Response: 20 Hz – 20 kHz ±0.2 dB

• Total Harmonic Distortion (THD): < 0.01%

• Signal-to-Noise Ratio (SNR): > 110 dB

• Input Sensitivity: 1.2 V RMS

• Input Impedance: 47 kΩ

• Damping Factor: > 300

• Cooling: Convection / Heat sinks

• Power Supply: Toroidal transformer with high-capacity reservoir capacitors

• Standby Power Consumption: < 1 W

• Dimensions: 440 mm (W) × 400 mm (D) × 120 mm (H)

• Weight: ~16 kg

• Chassis / Build: Heavy-duty aluminum, front-panel LED indicators

• Other Features: Bridging capable, speaker protection circuits, high-current output stage
