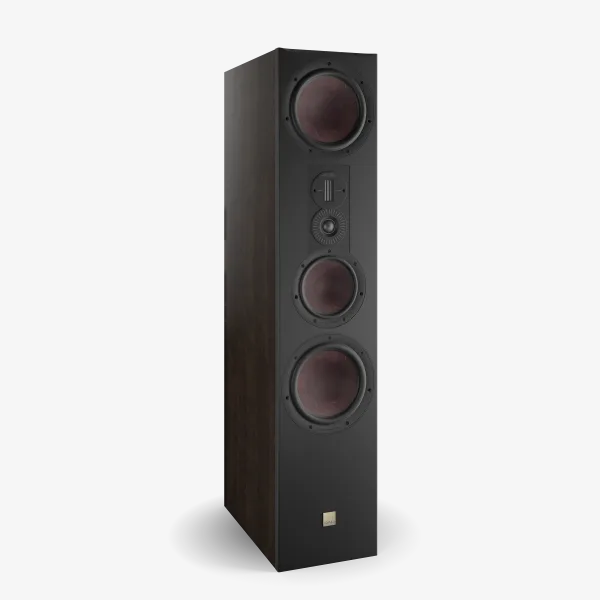

Dali Opticon 8 Mk2

Specifications

• Frequency range (±3 dB): 38 Hz – 30 kHz

• Sensitivity (2.83 V / 1 m): ≈ 88.5 dB

• Nominal impedance: 4 Ω

• Recommended amplifier power: 40 – 300 W

• Maximum SPL: ≈ 112 dB @ 1m

• Crossover frequencies: ≈ 380 / 2,200 / 14,000 Hz

• Driver complement:

  • High-frequency: 1 × 29 mm soft dome tweeter + 1 × 17 × 45 mm planar (ribbon) element

  • Mid/Low-frequency: 1 × 6½″ midrange driver + 2 × 8″ woofers

• Enclosure type: Bass-reflex (with dual-flare ports)

• Minimum recommended distance from rear wall: ~30 cm to ~150 cm (varies with setup)

• Dimensions (H × W × D): ~1141 × 241 × 450 mm

• Weight: ~34 kg (≈ 75 lb) per speake
