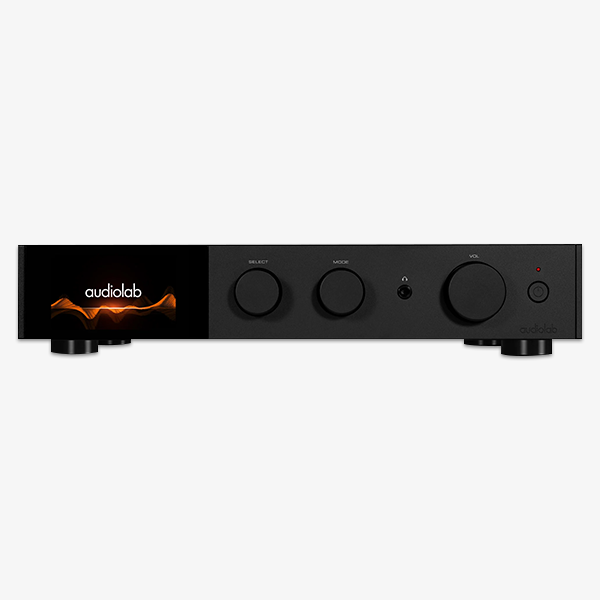

Audiolab 9000A

Specifications

• Type: Integrated Amplifier with DAC, Phono & Headphone Amp

• Power Output:

  • 2 × 100 W into 8 Ω (Class AB)

  • 2 × 160 W into 4 Ω

• DAC: ESS ES9038PRO (32-bit)

• Display: 4.3″ IPS LCD

• Decoder: Certified MQA Full Decoder (USB, Coax, Optical)

• Bluetooth: Bluetooth 5.1 (aptX / aptX HD / AAC / LDAC)

• Phono Stage: MM (Moving Magnet)

• Headphone Amplifier: Current-feedback amp, supports 20–600 Ω load

• Operating Modes: Integrated / Pre‑Power / Pre Only

• Inputs:

  • 3 × Analog (RCA)

  • 1 × Balanced (XLR)

  • 1 × Phono MM

  • 1 × Power Amp In

  • 2 × SPDIF Coax

  • 2 × SPDIF Optical

  • 1 × USB‑B

  • 1 × Bluetooth

  • 1 × 12 V Trigger

• Outputs:

  • 1 × Pre-Out

  • 1 × Stereo Speaker Out

  • 1 × Headphone Out

  • 1 × 12 V Trigger

• Digital Sampling Support:

  • Optical / Coax: 44.1 kHz – 192 kHz

  • USB: PCM up to 768 kHz, DSD up to DSD512

• Gain: +29 dB (power amp section)

• Preamp Gain: +6 dB (Line), +53 dB (Phono MM)

• Input Sensitivity:

  • Line: 1 Vrms

  • Phono MM: 4.4 mV

• Input Impedance:

  • Line: 10 kΩ

  • Phono MM: 47 kΩ // 100 pF

• Total Harmonic Distortion (THD): < 0.002% (50 W / 8 Ω)

• Frequency Response: 20 Hz – 20 kHz (±0.1 dB)

• Signal-to-Noise Ratio (SNR): > 110 dB (Line), > 80 dB (Phono MM)

• Maximum Output Current: 15 A

• Standby Power Consumption: < 0.5 W

• Dimensions: 444 mm (W) × 89 mm (H) × 342 mm (D)

• Weight: ~9.4 kg
