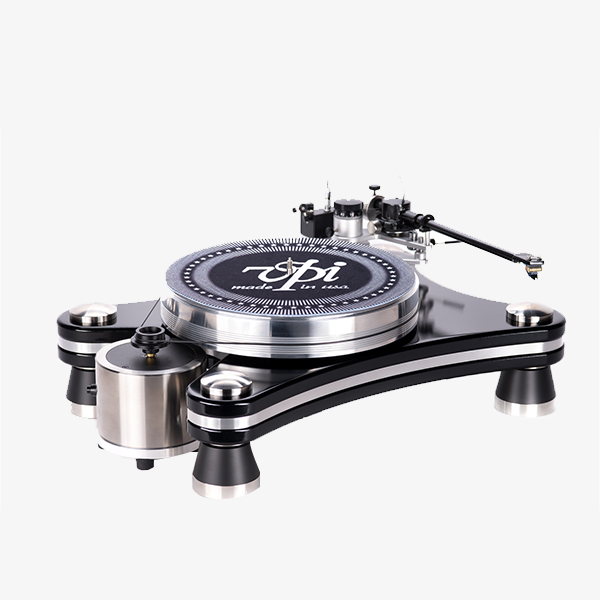

VPI Signature

Specifications

• Platter: Machined 6061-aluminium combined with stainless steel, weighing ~20 lbs (~9.1 kg).

• Platter-bearing: Precision inverted bearing; run-out ≤ 0.001″ over a 39″ circumference.

• Motor / drive: 24-pole AC synchronous motor; belt-driven around the centre of the bearing to minimise “teeter-totter” effects.

• Chassis / plinth: Sandwich construction — ½″ thick machined aluminium bonded to ⅛″ steel plate, bonded to 2″ of MDF for heavy mass/damping.

• Dimensions (footprint / size): Footprint ~ 19.25″ × 14.25″; overall ~ 20.5″ × 15.5″ × 9.5″ (≈ 520 mm × 394 mm × 241 mm).

• Weight: Approx. 65 lbs (~29.5 kg) for the chassis/turntable unit.
